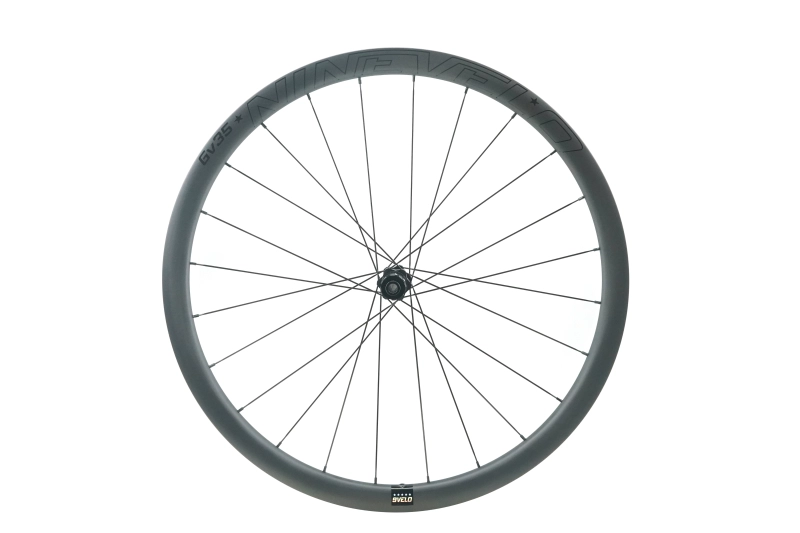

Gravel GV Series 24H/24H

SKU: GV35 / Shimano / Black / 36T
"Gravel Adventure & Versatility"

Microspline Road freehub body for GRX 1x groupset's Microspline cassette is available.

650B-GV45 comes with no decals.

*Notice: This model does not have ready-to ship stock. ~3 weeks of production lead-time before shipping out.

5.0 （16 Reviews）
$889.00 $989.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    GV35
    GV45
    GV45-650B (No decals)
  • Freehub:
    Shimano
    XDR
    N3W 13 speed
    Shimano Micro Spline Road (GRX MS cassette)
  • Water Decal:
    Black
  • Hub Ratchets:
    36T
Qty:
-
+
Add to Favorites (10)
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series 24H/24H
  • Gravel GV Series 24H/24H
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series 24H/24H
  • Gravel GV Series 24H/24H
1/1
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series
  • Gravel GV Series 24H/24H
  • Gravel GV Series 24H/24H
  • Description
  • Maintenance Notes
  • Warranty

FEATURES

  • Balanced lacing and even spoke tension offer a stiff and efficient wheel for smooth riding experiences.
  • Well-recognized Sapim CX-Ray spokes offer a combination of strength aerodynamics, and flexibility, contributing to the overall stiffness of the wheel.
  • Hubs with good geometry build the whole wheels even stiffer.
  • Extra 650B version gravel wheelsets for small-size bikes and for achieving 700C road bike geometry while combined with big-sized 650B tires (Don't forget to check your frame's tire compatibility).
  • A 26mm inner width (22mm for 650B wheelsets) decreases the vibration during your gravel journey, providing easier handling and less power loss.
  • The carbon layup with high-level precision makes the extraordinary stiffness-to-weight ratio, ensuring your confidence in all road conditions.
  • Endurable hubs allow you to ride joyfully with dirt, terrain, trek, and wet... without worrying about durability.


SPECIFICATIONS

GRAVEL GV Series
Model GV35 GV45 GV45-650B
Wheel Type 700C Gravel Wheelset 650B Gravel Wheelset
Brake Type Disc Brake
Tire Compatibility Tubeless/Clincher Compatible
Rim Finish UD Matte
Rim Depth 35mm 45mm 45mm
Rim Outer Width 32mm 30mm
Rim Inner Width 26mm 22mm
Tire Size Range Compatibility 700 × 30c-50c 650 x 25-45c
Spoke Hole Count 24H/24H
Spoke Sapim CX-Ray
Spoke Pattern 2X front, 2X rear
Nipple Sapim SILS

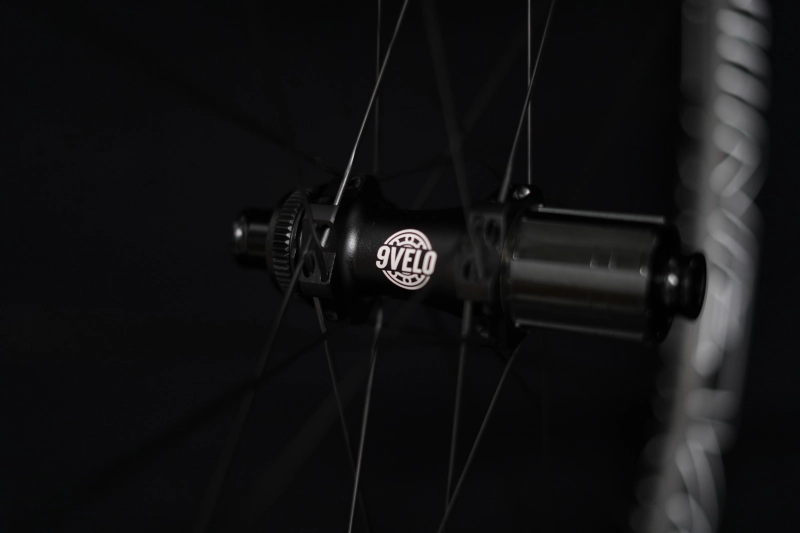

Hub V330 Straight Pull (PG Ratchet system, 36 Teeth), Center Lock, 12*100/12*142
Bearing Steel bearings, front: 6803*2, rear: 15267*4 (Shimano) / 15267*2, 6802*2 (XDR)
Weight (Pair)* 1302g* 1378g* 1387g*
Rider Weight Limit No Limit
Warranty 2 Year Warranty (Consumables not included)
*Weighted with Shimano alloy freehub body, ±30g
*The titanium freehub body upgrade is 18 grams heavier than the standard alloy freehub body.
*Specs are subject to change without notice.

RIM PROFILE



IN THE BOX
  • Tubeless valves
  • Spare spokes
  • Spare nipples




WHEEL CARE TIPS

Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.
NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.


LIMITED 2-YEAR WARRANTY


At 9Velo we are proud to have the leading quality control process in the industry. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.

When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, the shipping fee is borne by the customer.



LIFETIME REPAIR SUPPORT


We provide lifetime warranty service with some extra charge based on the different cases.



EXCEPTIONS TO THE 2-YEAR WARRANTY


The above warranty, or any implied warranty, does not cover:
。Normal wear and tear on parts.
。Consumable components including bearings, spokes, nipples, brake pads and brake track.
。Damage while using non-approved brake pads or tires on your product.
。Not the original owner of the wheelset.
。Modifications of the product from its original condition.
。Malicious damage and inappropriate usage.



WARRANTY PROCEDURE


If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
。Stop using and riding on it immediately.
。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
。We will reply to you and progress as soon as possible.


RETURN POLICY


Return policy for the non-quality-related issues:
。If there are no quality issues with the product, the customer is responsible for both the return shipping fee and any import tax incurred.
。Considering the high expense of international shipping, we kindly recommend that customers carefully review the product details and specifications before payment to avoid unnecessary returns.

Return policy for quality-related issues:
。In the event of quality problems, please refer to the warranty policy above.
。We are committed to providing excellent customer service and will address any quality-related issues promptly.


ORDER CANCELLATION POLICY


Orders typically take between 3days to 4 weeks to process before shipping out.
Cancellation policy is:
。Cancellations Before Shipping: Orders can be cancelled if they have not been shipped. Please note that a transaction fee from PayPal will be incurred, which will be borne by the buyer.
。After Shipping or Custom Orders: Orders cannot be canceled if they have already been shipped or if there are customized wheels.

We kindly advise making a definitive decision before purchasing to avoid any inconvenience.



CRASH REPLACEMENT PROGRAM


We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.

All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.
