Home > Gravel > 9Velo 2025 Gravel Disc Super Wide GV45 SW 24H/24H (32mm inner width)

1/1

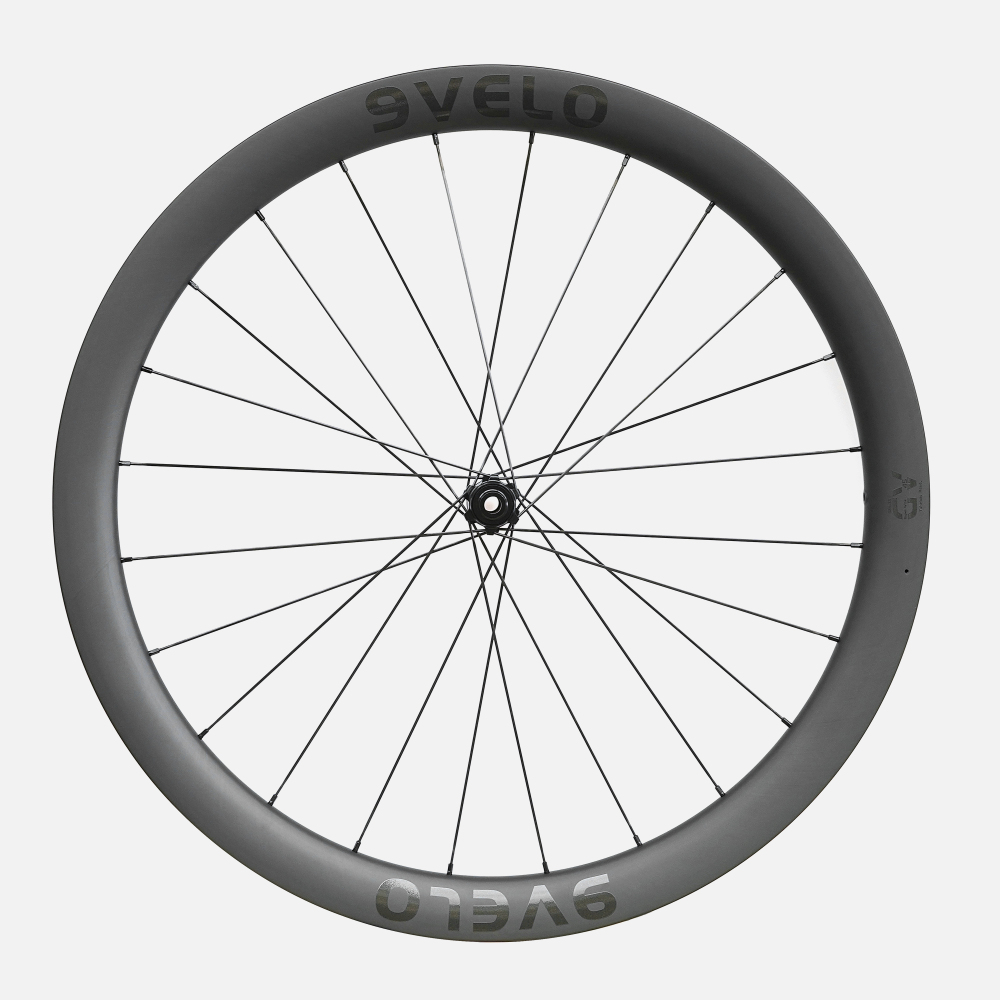

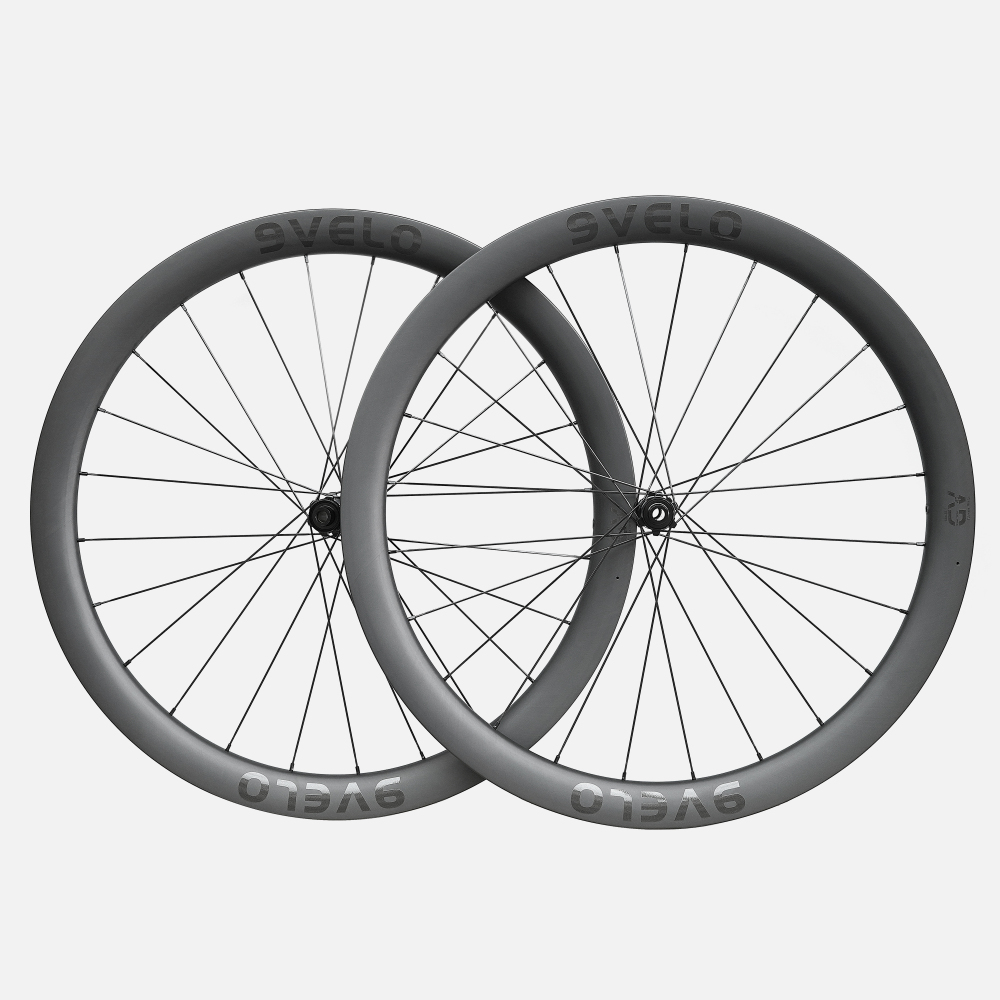

9Velo Gravel Disc Super Wide GV45 SW 24H/24H (32mm inner width)

Name: 9Velo Gravel Disc Super Wide GV45 SW 24H/24H (32mm inner width)
Brand: 9VELO On-line Shop
SKU: GV45 SW / Shimano HG 11/12s Compatible / 36T / Si
Price: 1059 USD
Availability: InStock
Rating: 5.0 (1 reviews)

SKU: GV45 SW / Shimano HG 11/12s Compatible / 36T / Si

"Experience the future of gravel."

With an ultra-wide 32mm internal width and a 38mm external rim width, gravel-specific GV Super Wide SW gravel wheels optimize comfort and control while maintaining agility and speed, redefining what's possible on rough terrain.
Featuring the T18 ratchet system hub, carried over from our trusted GV 2.0 gravel wheels.
Titanium freehub body upgrade available.
45T ratchets upgrade is available, which offers quicker engagement.

*Notice: High Demand. Ships within 2~3 weeks.

Microspline Road freehub body for GRX 1x groupset's Microspline cassette is available.

5.0 （1 Reviews）

$1,059.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

GV45 SW
Freehub:

Shimano HG 11/12s Compatible

Sram XDR

Shimano Micro Spline Road (GRX MS cassette)

N3W 13S
Hub Ratchets:

36T

45T
Hub Color:

Silver Gray

Black
Freehub Body Material:

Alloy

Titanium (+$80)

Qty:

Add to Favorites (6)

1/1

Frequently Bought Together

Buy Wheelset and Spare Freehub Body Together

9Velo Gravel Disc Super Wide GV45 SW 24H/24H (32mm inner width)

Choose Options

GV45 SW, Shimano HG 11/12s Compatible, 36T, Silver Gray, Alloy

$ 1,059.00

1

Free Hub

Choose Options

PG Ratchet, XDR

$ 55.00 $90.00

Total: $ 1,114.00

Save $-1,024.00 for buying together

FEATURES

Durable Titanium Freehub (Optional)

Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).

Ultra WIde Rim

With outstanding stiffness-to-weight ratio and an ultra wide profile, the gravel-specific GV45 SW gravel wheels optimize comfort and control while maintaining agility and speed on rough gravel terrain.

Closed Rim Bed & Tubeless Ready

GV SW are compatible with tubeless tires and traditional clincher tires, facilitating a broader range of wide road and gravel tire choices and offering comfort and stable handling. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety. Besides, the no-hole-drilled tubeless-ready rim bed also facilitate an easier tubeless (or clincher) set up with no need for rim tape or spoke hole plugs.

Gravel Specific Experience

Wider rim does not mean the weight is compromised.The wheelset weight is at 1360 grams (Shimano Version, ±30g).

Description
Maintenance Notes
Warranty

FEATURES

RIM

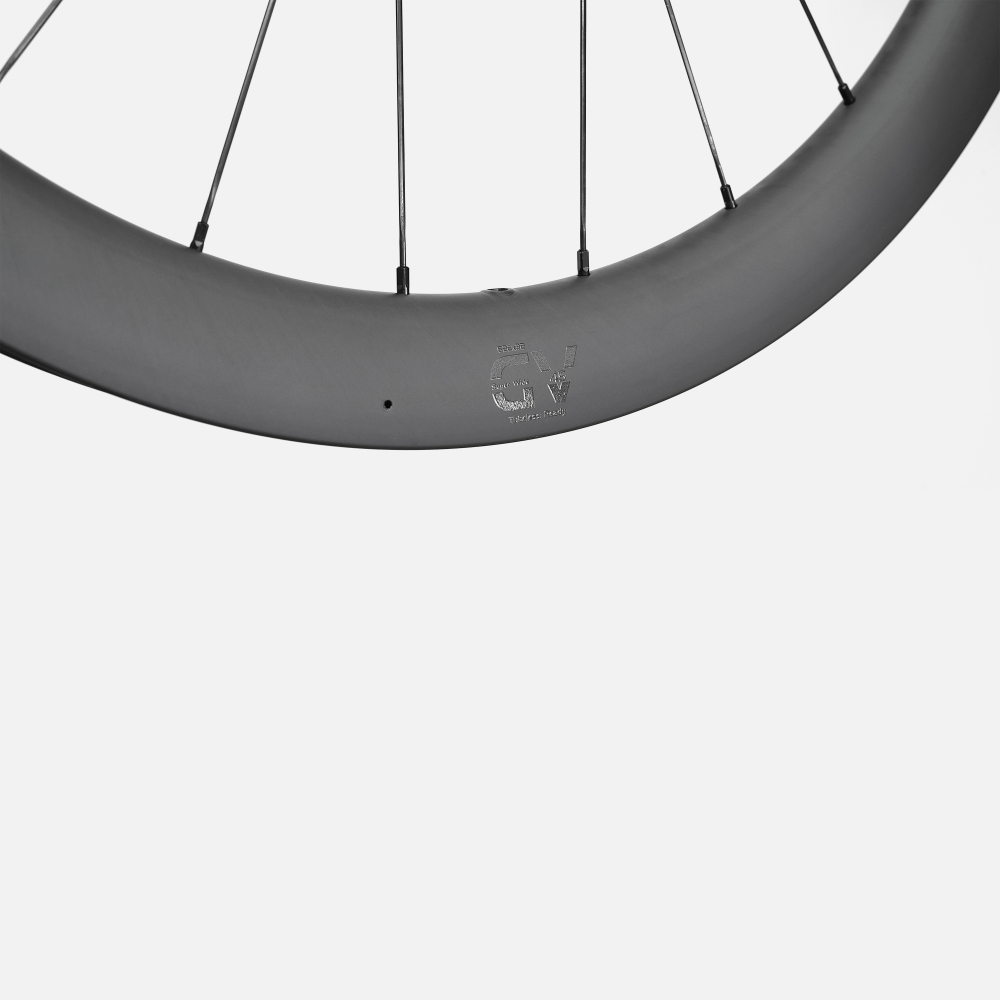

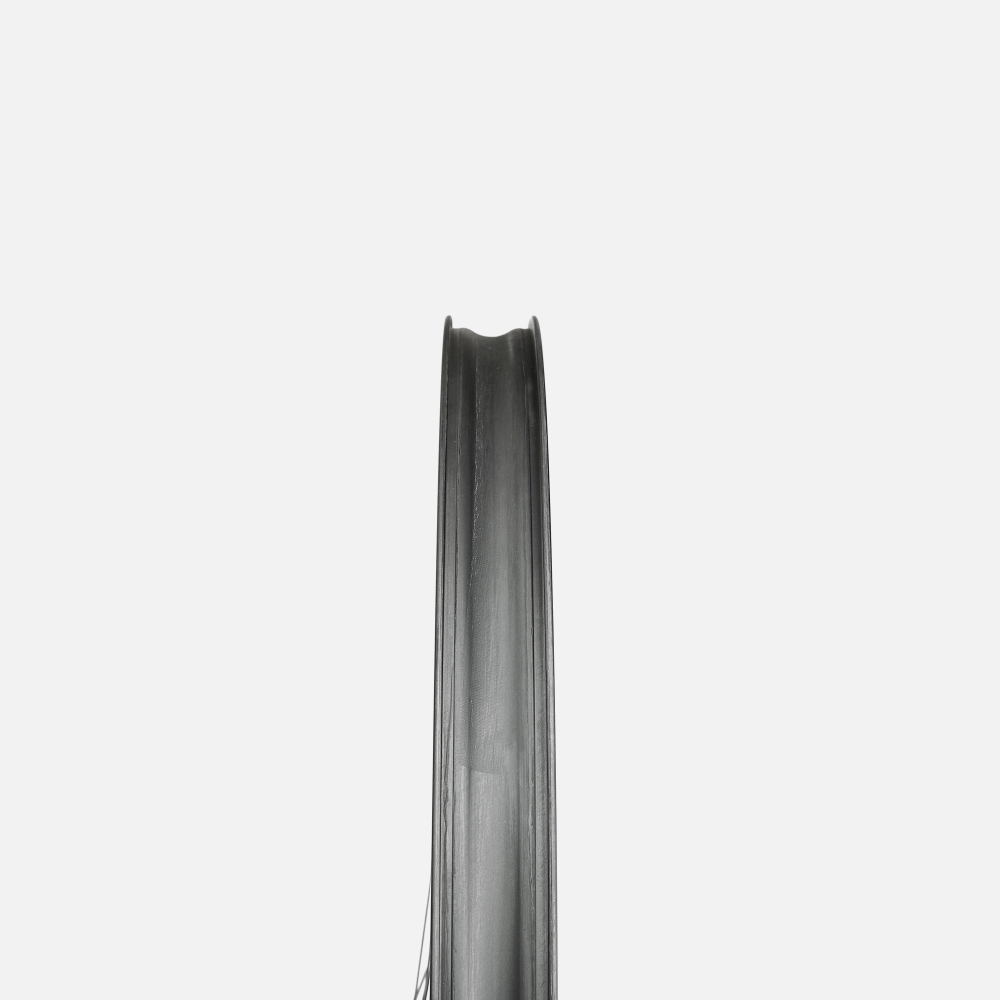

With an ultra-wide 32mm internal width and a 38mm external rim width, gravel-specific GV Super Wide SW gravel wheels optimize comfort and control while maintaining agility and speed, redefining what's possible on rough terrain.
No holes are drilled on the rim beds, offering convenient tubeless tire installation and saving the weight of tubeless tapes.
The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.
Tubeless/clincher compatibility offers you more choices of tires.
The gravel-specific carbon layup with high-level precision makes the extraordinary stiffness-to-weight ratio, ensuring your confidence in all road conditions.

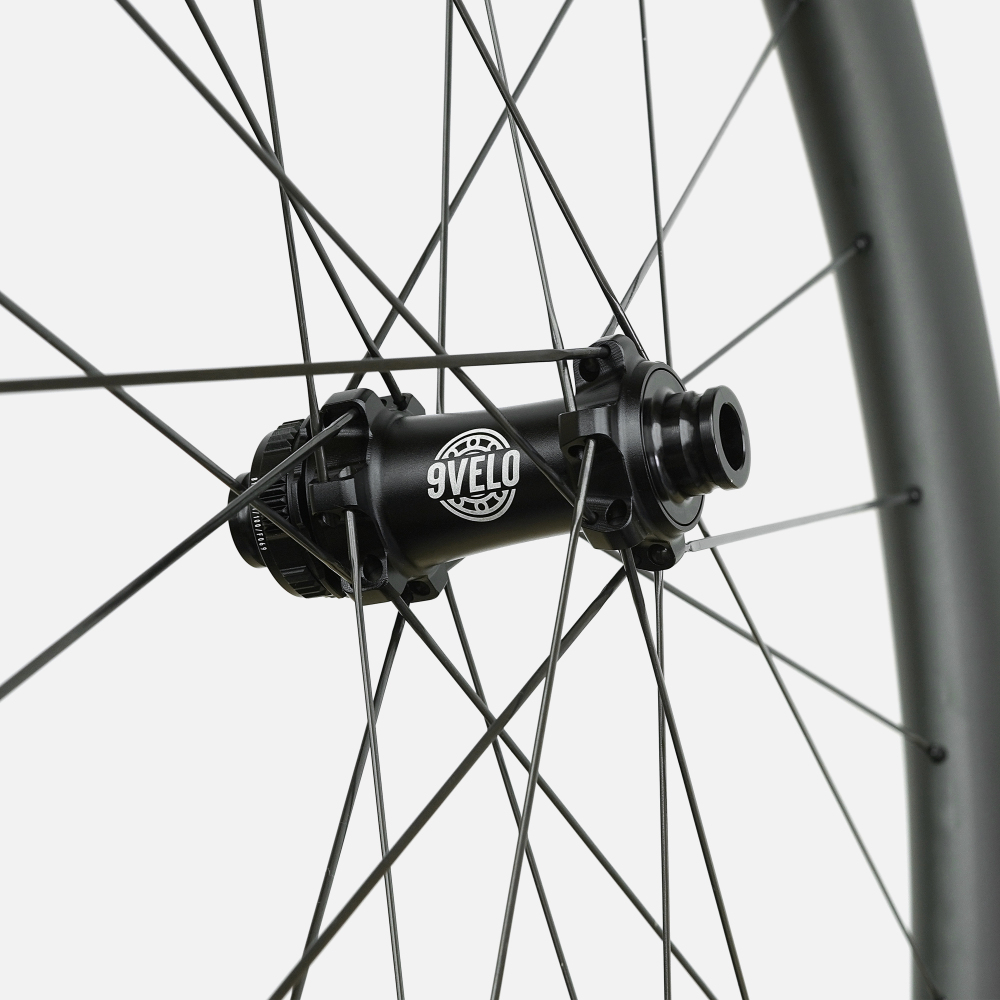

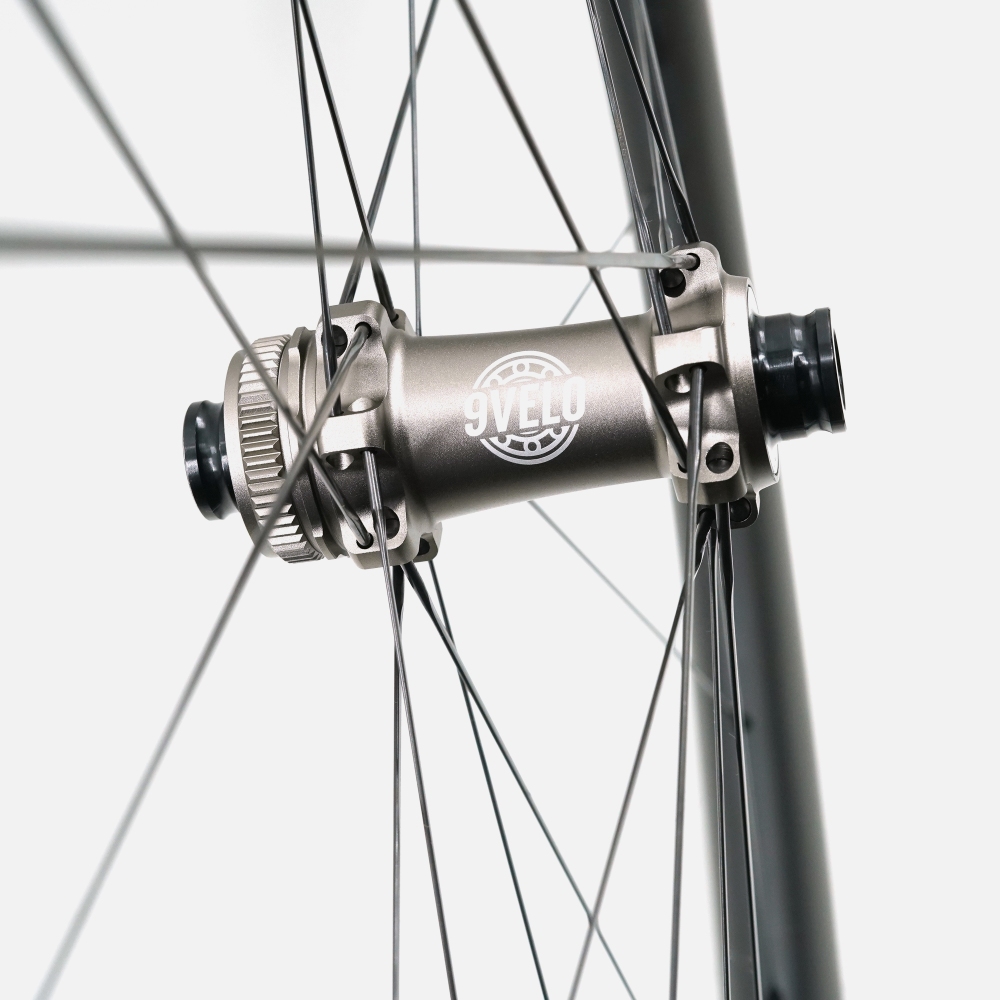

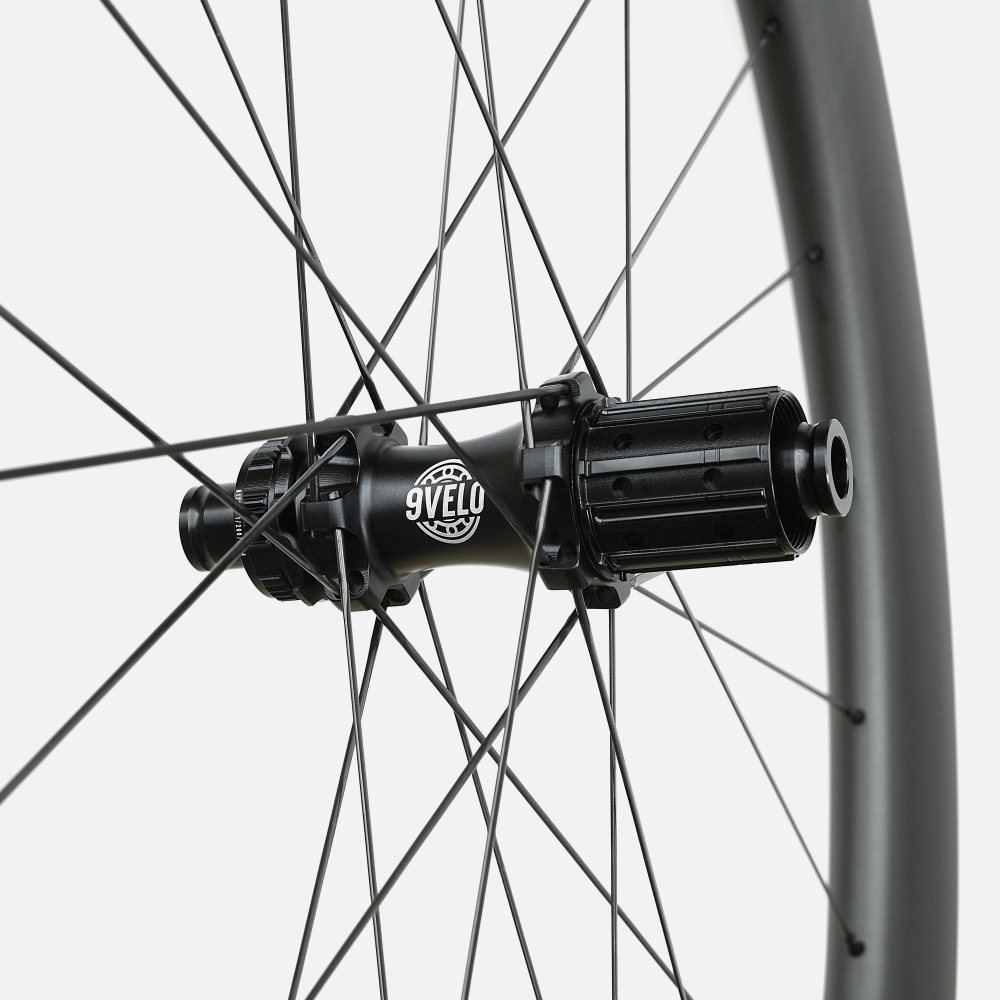

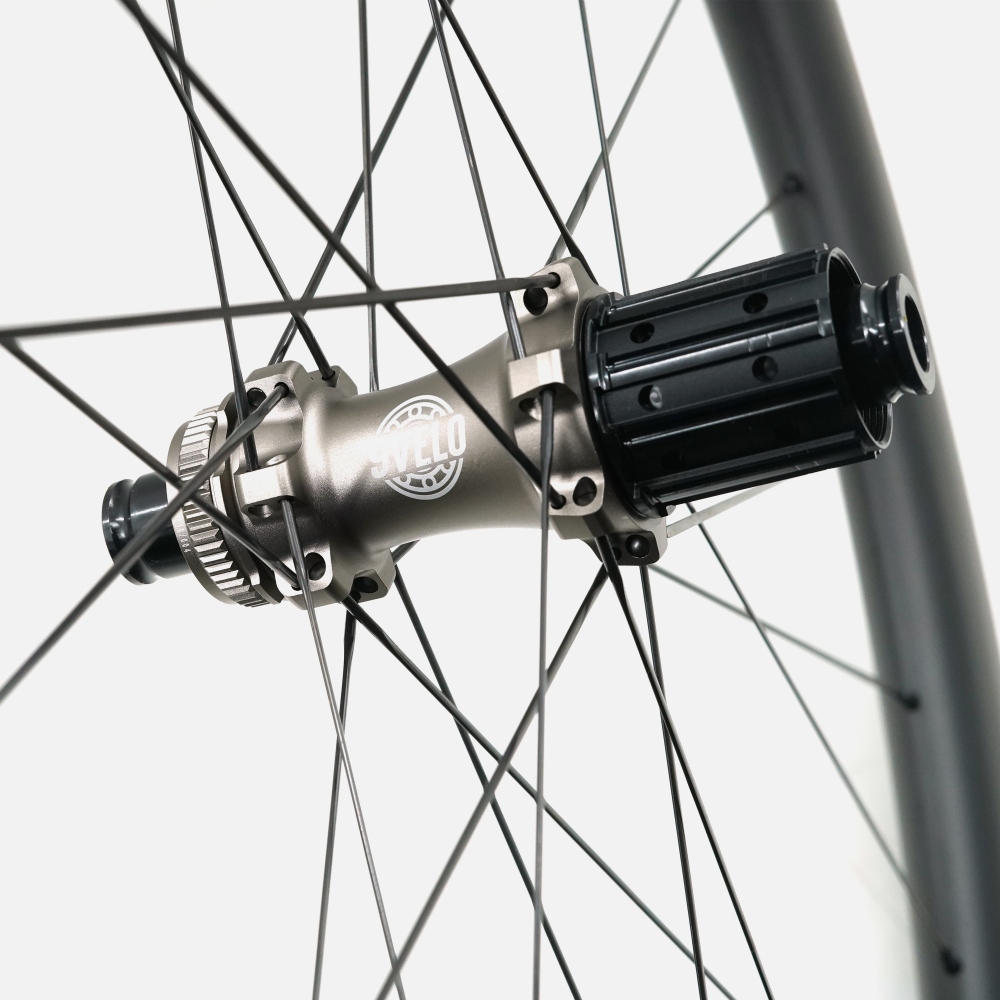

HUB

Specially developed T18 ratchet hubs carried over from the GV 2.0 series are kept in the gravel super wide GV SW wheels.
Hubs are designed and manufactured to match the tolerance of high-quality bearings.
Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration.
High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
Lightweight freehub body equipped.
Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.

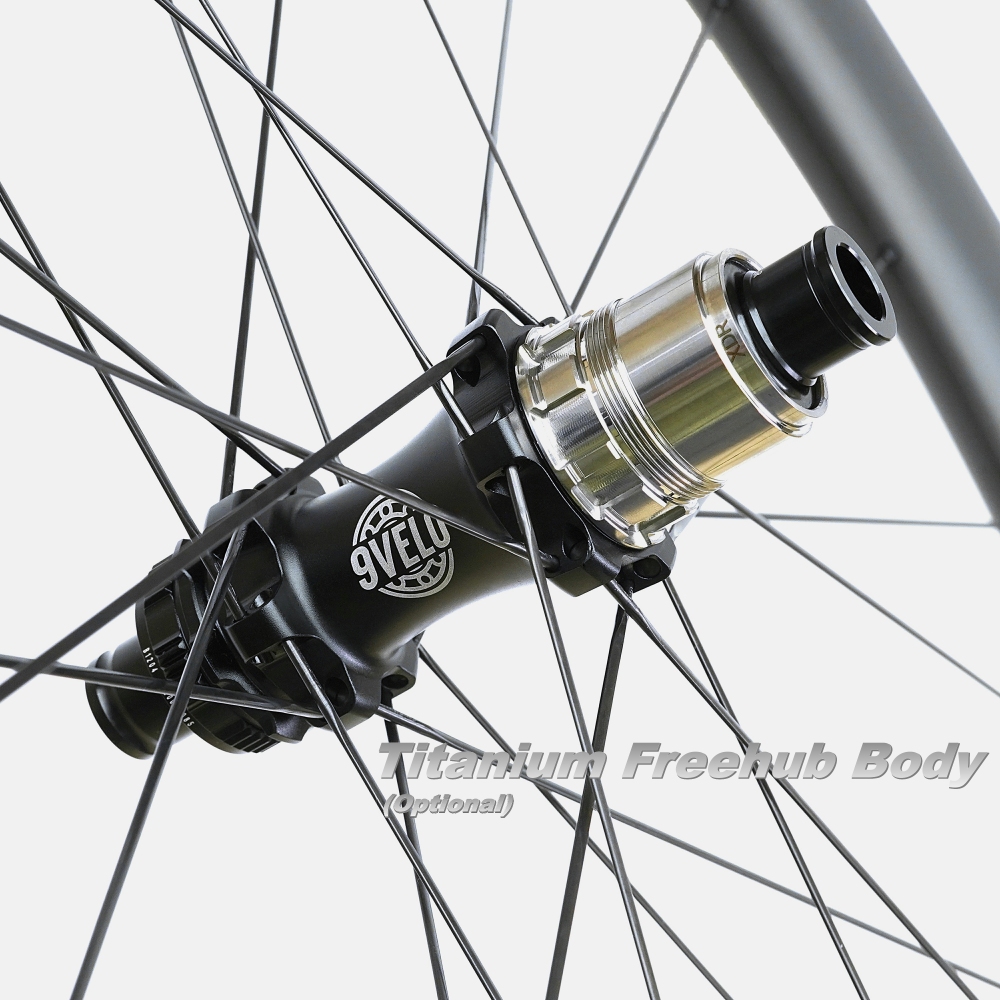

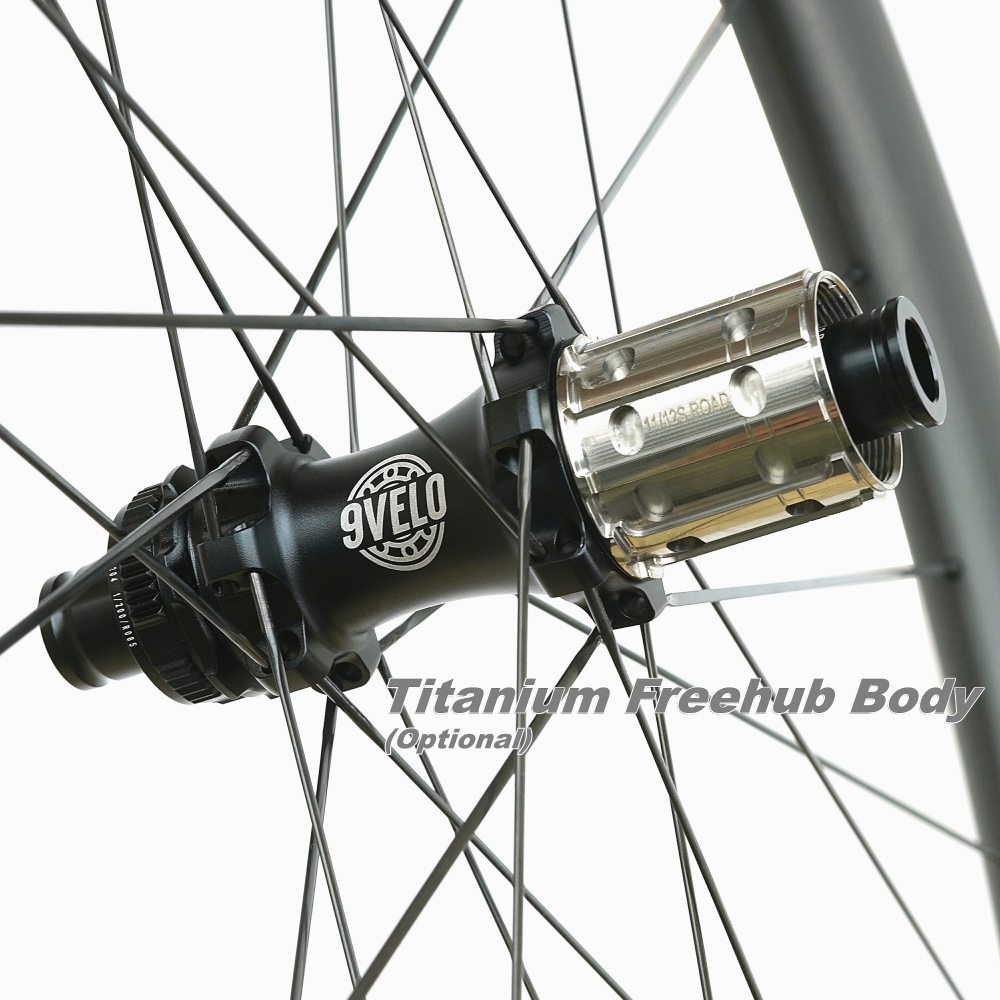

Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).

SPOKE & NIPPLE

Well-recognized Sapim CX-Ray spokes and Sapim Sils nipples provide a balance between stiffness, durability and aero benefits.

SPECIFICATIONS

Gravel Disc Super Wide GV SW Series (Model Year 2025)
Model	GV45 SW
Wheel Type	700C Gravel Wheelset
Brake Type	Disc Brake
Tire Compatibility	Tubeless/Clincher Compatible
Rim Type	Hooked
Rim Bed	No Holes Drilled
Rim Finish	UD Matte
Rim Decal	Dark Gray Logo
Rim Outer Width	38mm
Rim Inner Width	32mm
Rim Depth	45mm
Tire Size Range	700×44c-700×65c
Spoke Hole Count	24H/24H
Spoke	Sapim CX-Ray, 2X front, 2X rear
Nipple	Sapim SILS
Hub	9Velo T18 Hub, Straight Pull (Ratchet System, 36 Teeth), Center Lock, 12100/12142
Freehub	Shimano/Sram XDR/Campagnolo N3W
Bearing	Steel bearings, Front: 68032, Rear: 152672, 6802*2
Rider Weight Limit	120kg/265lbs
Weight (Front + Rear)*	1360g*

*Weighted with alloy Shimano Freehub, ±30g
* The titanium freehub is 18 grams heavier than the alloy freehub.
*Specs are subjected to change without notice.

IN THE BOX

Wheelset
Tubeless valves
Spare spokes
Spare nipples

WHEEL CARE TIPS

Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.

NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.

LIMITED 2-YEAR WARRANTY

At 9Velo we are proud to have the leading quality control process in the industry. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.

When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, the shipping fee is borne by the customer.

LIFETIME REPAIR SUPPORT

We provide lifetime warranty service with some extra charge based on the different cases.

EXCEPTIONS TO THE 2-YEAR WARRANTY

The above warranty, or any implied warranty, does not cover:
。Normal wear and tear on parts.
。Consumable components including bearings, spokes, nipples, brake pads and brake track.
。Damage while using non-approved brake pads or tires on your product.
。Not the original owner of the wheelset.
。Modifications of the product from its original condition.
。Malicious damage and inappropriate usage.

WARRANTY PROCEDURE

If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
。Stop using and riding on it immediately.
。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
。We will reply to you and progress as soon as possible.

RETURN POLICY

Return policy for the non-quality-related issues:
。If there are no quality issues with the product, the customer is responsible for both the return shipping fee and any import tax incurred.
。Considering the high expense of international shipping, we kindly recommend that customers carefully review the product details and specifications before payment to avoid unnecessary returns.

Return policy for quality-related issues:
。In the event of quality problems, please refer to the warranty policy above.
。We are committed to providing excellent customer service and will address any quality-related issues promptly.

ORDER CANCELLATION POLICY

Orders typically take between 3days to 4 weeks to process before shipping out.
Cancellation policy is:
。Cancellations Before Shipping: Orders can be cancelled if they have not been shipped. Please note that a transaction fee from PayPal will be incurred, which will be borne by the buyer.
。After Shipping or Custom Orders: Orders cannot be canceled if they have already been shipped or if there are customized wheels.

We kindly advise making a definitive decision before purchasing to avoid any inconvenience.

CRASH REPLACEMENT PROGRAM

We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.

All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.
